Duro Structural Products
DURO DEK 603
DURO DEK603 is the center of a framework and reinforcement system for concrete slab construction. It is profiled steel sheeting widely accepted by the building construction industry to be highly economical, versatile and robust. It has been used to great effect on many major building projects, as well as countless small ones.

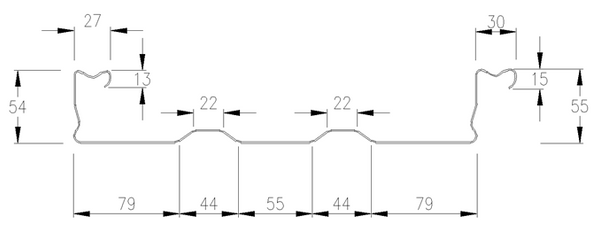

The nominal dimensions of DURO DEK603 profiles steel sheeting are shown as below. In the assembled state, the profile comprises two intermediate dovetail ribs for every interlocking side lap joint.
Material : 1.0 mm BMT AS 1397 G550 Z275
Durodek300 “康得樓承板”
Profile:“Durodek300 康得樓承板” is the center of a fromework and reinforcement system for concrete slab construction. It is profiled steel sheeting widely accepted by the building construction industry to be highly economical, versatile and robust. It has been used to great effect on many major building projects, as well as countless small ones.
The 25um PVDF colors coat at underside for corrosion resistance and improve the appearance.
The nominal dimensions of “康得樓承板” profiles steel sheeting are shown in Fig1. In the assembled state, the profile comprises two intermediate dovetail ribs for every interlocking side lap joint.
DURO DEK 620 decking / DURO DEK 620 Aluminium decking
(EN485 3003-H24)
The nominal dimensions of DURO DEK620 profiles steel sheeting are shown as below. In the assembled state, the profile comprises two intermediate dovetail ribs for every interlocking side lap joint.
Material :
1.0 mm BMT AS 1397 G550 Z275 or
Alumimium 1.0mm/ 1.2mm/1.5mm EN 485 Grade 3004-H24 with PVF2 Coating (min order 500m2)
